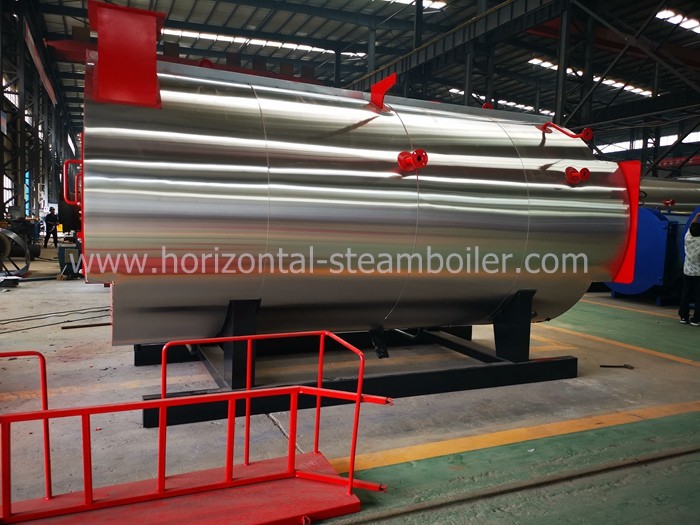

WNS type integrated condensing boiler high efficiency oil boiler for Paper industry
The energy-saving effect of the WNS integrated condensing boiler high efficiency oil boiler is more remarkable, and the thermal efficiency is over 100%. The furnace is a horizontal, two-return, wet-back fire tube boiler with an external condensing energy saver.
The high efficiency oil boiler is self-contained, the boiler body, the front smoke box, the outer insulation, the ladder platform and the base are all assembled and assembled, and the auxiliary components such as the condensing energy saver, the valve instrument, the burner and the control equipment are pre-assembled and dismantled. Assemble to the user site.
Capacity: 0.5-20T / 0.35-14MW
Fuel: natural gas, coke oven gas, city gas, light oil, heavy oil, palm oil
Thermal efficiency: 100.9%
Applications: washing, paper, food, building materials, residential heating, heating, etc.
High efficiency oil boiler characteristics
1, Wet back type back-ignition technology wet back type combustion technology
Through the transformation of the reburning chamber, the two reciprocating processes of flue gas and the embedding of the corrugated furnace and the like are realized, which greatly improves the thermal efficiency of the boiler, saves the production materials and greatly shortens the production period.
2, Waste heat recovery unit waste heat recovery unit
The condensing waste heat recovery device of the condensing boiler repeatedly absorbs the smoke and steam removed from the boiler, which not only improves the energy efficiency of the boiler, but also saves a lot of operating costs for the customer.
3, High and low water level, ultra-high pressure and other emergency measures, safety protection, high and low water level, ultra-high pressure and other emergency measures
Various instruments and automatic control devices are installed inside the boiler to automatically start and stop when there is an alarm condition inside the furnace, which achieves perfect protection and makes customers feel more at ease.
4, Multi-function safety explosion-proof device
The explosion-proof device connected to the furnace is arranged on the rear plate of the boiler to prevent the high energy of the venting moment when the fuel is violently detonated in the furnace, and can be automatically reset. At the same time, it has the function of viewing the sight glass and the inspection passage, and is utilized in operation. The adjustment of the combustion flame, furnace inspection, and easy maintenance.
6, High efficiency oil boiler maintenance is convenient
There is a manhole at the top of the boiler, and a hand hole device is arranged below the front and rear of the boiler to facilitate inspection and cleaning of the furnace unit and the bottom of the boiler.
7, The front and rear smoke box seal is unique
The smoke box adopts double-opening smoke box door, which is convenient to open, multi-stage labyrinth seal, special sealing material, good compression performance, complete barrier of smoke leakage, and can be reused.
8, Water temperature, water level protection is reliable
Boiler water temperature, water level setting multiple control protection, and super smoke temperature protection to ensure the safety of boiler operation.
9, Automatic control level leading
The high efficiency oil boiler controller adopts Siemens or Delixi electrical components and has reliable performance. It has a Chinese-English menu type for LCD display, and a touch screen type for remote control of man-machine dialogue.
Yongxing strength: A-class boiler manufacturing enterprise, more than 60 years of production experience, 86 exporting countries, more than 200 company employees, more than 600 professional equipment, more than 5,000 tons of productivity, 100,000 square meters of production base.
| No. | industry | usage |
| 1 | Chemical industry | polymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration |
| 2 | Plastic industry | plastic foam and squeeze to finalize the design, |
| 3 | Textile industry | resin stenters,dyeing machine and the dry room,high temperature machine,roller |
| 4 | Rubber industry | cooking,dry,vegetable oil refining |
| 5 | Wood industry | heating to finalize the design of chipboard,sandwich plate,wamu board,fiber |
| 6 | Paper industry | multi-layer cardboard of packed carton box,dying and desiccation |
| 7 | Others | heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc |
High efficiency oil boiler datasheet
| Model | Output | Pressure | Temperature | Fuel | Temperature |
| (t/h) | (Mpa) | (ºC) | (ºC) |
| WNS0.5-0.7/1.0/1.25-YQ | 0.5 | 0.7/1.0/1.25 | 170/184/194 | heavy oil/light oil, natural gas/LPG/city gas | 20 |
| WNS0.7-0.7/1.0/1.25-YQ | 0.7 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS0.8-0.7/1.0/1.25-YQ | 0.8 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1-0.7/1.0/1.25-YQ | 1 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1.5-0.7/1.0/1.25-YQ | 1.5 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS5-1.0/1.25/1.6-YQ | 5 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS8-1.25/1.6-YQ | 8 | 1.25/1.6 | 194/204 | 20 |
| WNS10-1.25/1.6-YQ | 10 | 1.25/1.6 | 194/204 | 20 |
| WNS12-1.25/1.6-YQ | 12 | 1.25/1.6 | 194/204 | 20 |
| WNS15-1.25/1.6-YQ | 15 | 1.25/1.6 | 194/204 | 20 |
| WNS20-1.25/1.6-YQ | 20 | 1.25/1.6 | 194/204 | 20 |
FOR QUOTATION FAQ:
Dear friend,
Thanks for your time for scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: high efficiency oil boiler
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.
It is ok to copy the question and answers directly when sending us the inquiry!
Welcome you any time!
